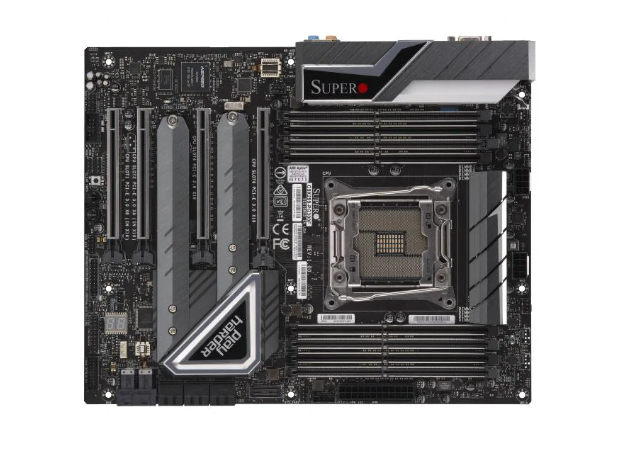

Supermicro C9X299-PG300F

Supermicro C9X299-PG300F

Chipset: Intel® X299

Supports: Intel® 10th Generation Core™ i9 Extreme X-series,

Intel® 7th Generation Core™ i7 X-series,

Intel® 9th Generation Core™ i7 X-series,

Intel® 9th Generation Core™ i9 X-series,

Intel® Core™ i9 Extreme X-series Processor,

● Single Socket LGA-2066 (Socket R4) supported, CPU TDP support Up to 165W TDP, supports 4 PCI-E 3.0 x16;

● 4x PCI-E 3.0 x16 Slots (8/NA/16/16 or 8/8/8/16(Core i9) or NA/4/8/16(Core i7));

● M.2 Interface: 2 PCI-E 3.0 x4, RAID 0 & 1, M.2 Form Factor: 2280;

● M.2 Key: M-Key, M-Key for SSD and Optane, U.2 Interface: 2 PCI-E 3.0 x4.

Features

1.  Intel® 10th Generation Core™ i9 Extreme X-series, Intel® 7th Generation Core™ i7 X-series, Intel® 9th   Generation Core™ i7 X-series, Intel® 9th   Generation Core™ i9 X-series, Intel® Core™ i9 Extreme X-series Processor Single Socket LGA-2066 (Socket R4) supported, CPU TDP support Up to 165W TDP

2.  Intel® X299

3.  256GB Unbuffered non-ECC UDIMM, DDR4-2933MHz, in 8 DIMM slots

4.  4 PCI-E 3.0 x16
    4xPCI-E3.0 x16 Slots(8/NA/16/16 or 8/8/8/16(Core i9) or NA/4/8/16(Core i7)***
    M.2 Interface: 2 PCI-E 3.0 x4, RAID 0 & 1
    M.2 Form Factor: 2280
    M.2 Key: M-Key    M-Key for SSD and Optane
    U.2 Interface: 2 PCI-E 3.0 x4

5.  6 SATA3 (6 Gbps) ports; RAID 0,1,5,10

6.  Single LAN with Intel® Ethernet Controller I210-AT
     Single LAN with Aquantia® AQC107 10G Ethernet Controller

7.  1 VGA port

Specifications

Product SKUs

MBD-C9X299-PG300F

C9X299-PG300F

Physical Stats

Form Factor

ATX

Dimension

12" x 9.6" (30.48cm x 24.38cm)

Processor

CPU

Intel® 7th Generation Core™ i7 X-series, Intel® Core™ i9 Extreme X-series Processor, Intel® 9th Generation Core™ i7 X-series, Intel® 10th Generation Core™ i9 Extreme X-series, Intel® 9th Generation Core™ i9 X-series

Single Socket LGA-2066 (Socket R4) supported, CPU TDP supports Up to 165W TDP

System Memory

Memory Capacity

8 DIMM slots

256GB UDIMM, DDR4-2933MHz

Memory Type

2933/2666/2400/2133/1866/1600MHz SDRAM 72-bit, 288-pin [nid:11707]

DIMM Sizes

4GB, 8GB, 16GB, 32GB

Memory Voltage

1.2V

On-Board Devices

Chipset

Intel® X299

SATA

6 SATA3 (6 Gbps) ports; RAID 0,1,5,10

IPMI

ASPEED AST2500

Audio

ALC 1220 HD Audio

Graphics

ASPEED AST2500 BMC

Network Controllers

Single LAN with Intel® Ethernet Controller I210-AT

Single LAN with Aquantia® AQC107 10G Ethernet Controller

Input / Output

LAN

1 RJ45 10GBase-T ports

1 RJ45 GbE port (IPMI Shared LAN)

USB

4 USB 2.0 port(s) (2 rear; 2 via header)

2 USB 3.2 Gen1 port(s) (2 via header)

2 USB 3.2 Gen2 port(s) (1 type A; 1 type C)

2 USB 3.0 port(s) (2 rear)

Video Output

1 VGA port(s)

Serial Port

1 COM Port(s) (1 header), (2 x RS232, 2 RS232/422/485, RS-485 supports Auto flow control)

TPM

1 TPM Header

Expansion Slots

PCI-E

4 PCI-E 3.0 x16

***4xPCI-E3.0x16Slots(8/NA/16/16or 8/8/8/16(Core i9) or NA/4/8/16(Core i7)***

M.2

M.2 Interface: 2 PCI-E 3.0 x4, RAID 0 & 1

Form Factor: 2280

Key: M-Key

System BIOS

BIOS Type

128MB UEFI

Management

Software

SuperDoctor® 5, IPMI2.0, Watchdog

PC Health Monitoring

Voltage

VBAT, Monitors CPU voltages, Chassis intrusion header, 3.3V standby, 1.2V (VDIMM), 1.05 (PCH), +5V,          +3.3V, +12V

FAN

6x 4-pin fan headers (up to 6 fans)

Thermal control tachometer fan connectors

PWM fan speed control

Fan speed control

Overheat LED indication

Other Features

WOL, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, ATX Power connector, ACPI power management, Voltage and Frequency Overclocking, Intel Smart Response Technology
