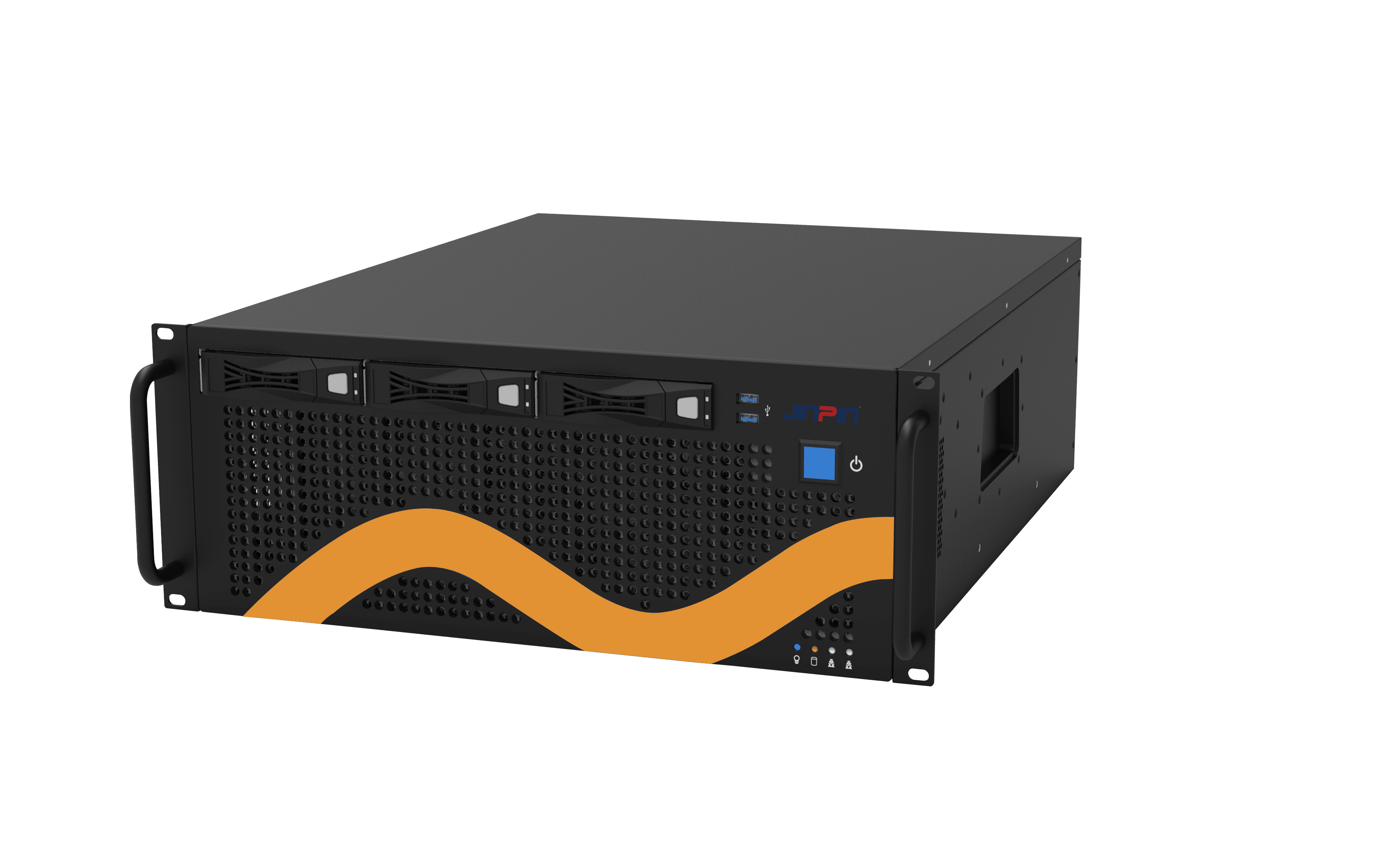

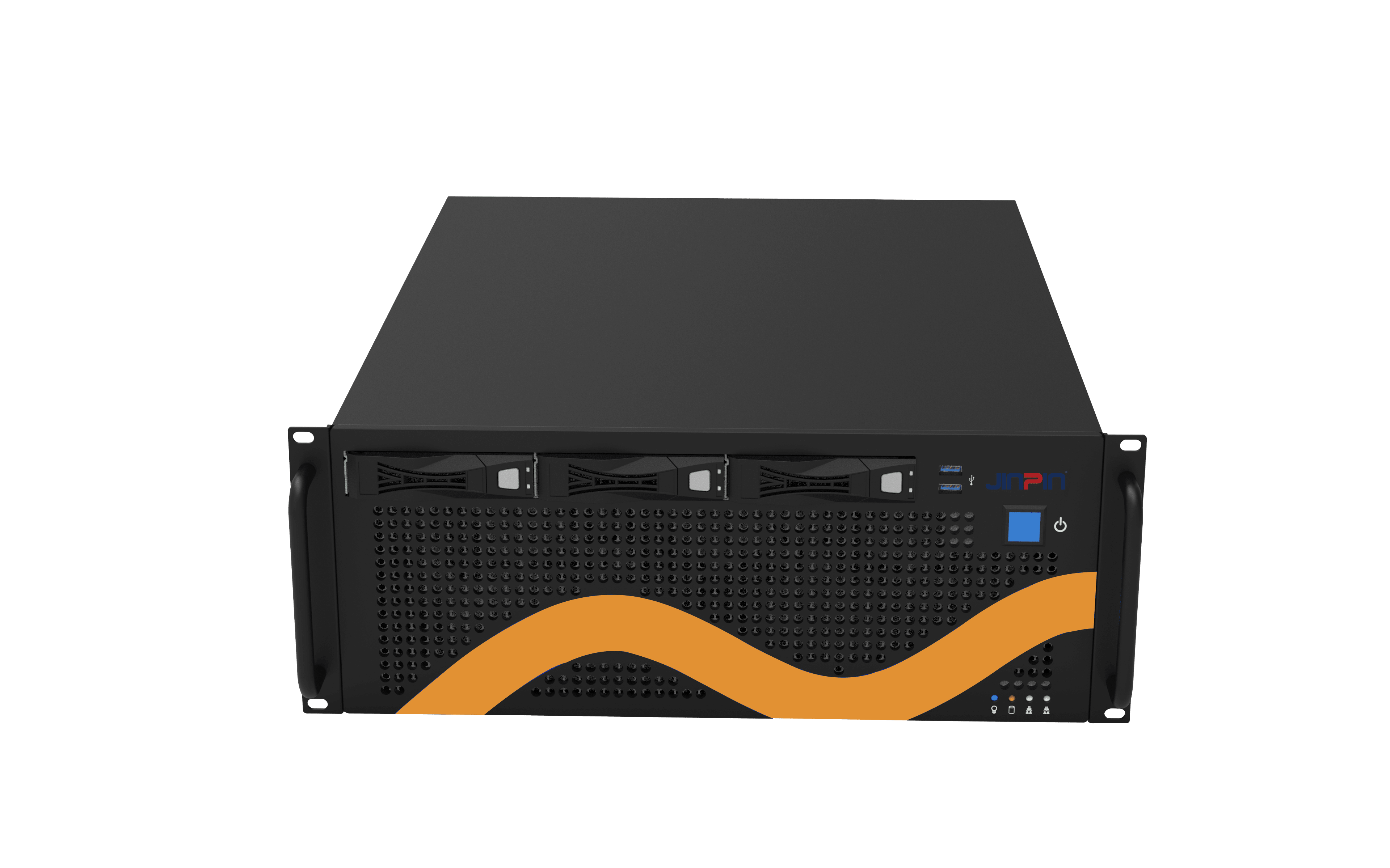

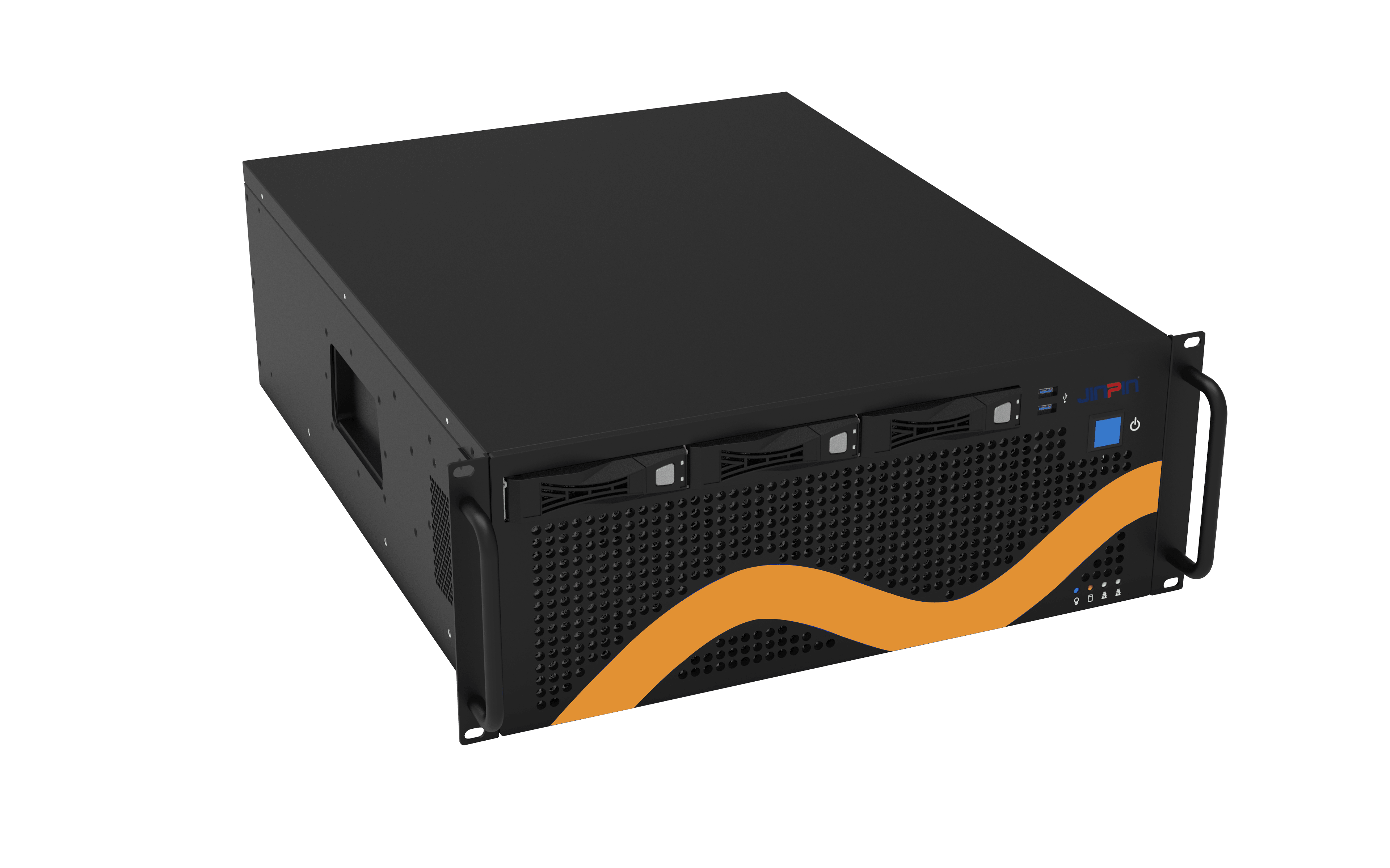

Jinpin KG4202-V2 Vision Detection Industrial Computer
Jinpin KG4202-V2 is an inference computing server developed based on the 1st/2nd generation Intel® Xeon® Scalable processors. It supports up to 2 NVIDIA GPU inference cards (passively cooled) in a 4U space, and can accommodate two 1st/2nd generation processors. It also has 4TB DDR4 ECC RDIMM memory with rack-mountable and independent airflow design for improved cooling and reduced system noise. It is suitable for high-performance computing applications such as deep learning training and inference, video analytics, big data, virtual computing, and more.
Leading Architecture
Supports up to 2 PCIe form factor expansion cards in a 4U space, compatible with NVIDIA Geforce graphics cards and Quadro professional cards.
Supports NVIDIA NVLINK interconnect technology for improved memory and performance expansion.
Supports new 100Gb network card for improved data transfer efficiency.
Outstanding Performance
Two 1st/2nd generation Intel® Xeon® Scalable processors with TDP 205W.
16 DDR4 ECC RDIMM memory slots, supporting up to 4TB of memory.
The motherboard has a native M.2 interface, which can achieve high-performance computing.
Flexible Configuration
Supports 3 3.5/2.5" hard drives with RAID data protection.
Supports 1+1 redundant CRPS power supply or tower power supply, effectively reducing cost.
Flexibly adapts to various brands of new generation AI accelerator cards and intelligent network cards.
Ready to Use
Pre-installed with Ubuntu operating system and deep learning SDK.
Deep learning frameworks include TensorFlow, PyTorch, and more.
Delivered in container form, shortening the software deployment cycle that could take days and improving work efficiency.
|
Components |
Description |
|
Specification |
4U Rackmount Chassis |
|
Dimensions |
176 x 435 x 550mm (H x W x D) |
|
Processor |
2 Intel Xeon Skylake/Cascade Lake processors, up to 205W |
|
Memory |
Supports up to 16 DDR4 ECC RDIMM/LRDIMM memory Supports frequencies of 1866/2133/2400/2666/2933MHz Supports up to 4TB of memory |
|
Storage |
1 M.2 NVMe hard drive 3 3.5" SATA hard drives |
|
Network |
Intel C621 dual 10GbE network |
|
GPU |
Supports 2 double-width GPU cards |
|
PCIe Expansion Slots |
4 PCIe 3.0 x16 expansion slots 2 PCIe 3.0 x8 expansion slots |
|
Display |
AST2500 |
|
Management |
IPMI 2.0 |
|
Other Interfaces |
VGA、4 x USB3.0、2 x USB2.0、1 x COM |
|
Power Supply |
1600W high-efficiency power supply |
|
Operating System |
Windows、ubuntu、 Centos、SUSE、Vmware |
|
Operating Environment |
Operating temperature: 10°C to 35°C, Operating humidity: 10% to 90% |
