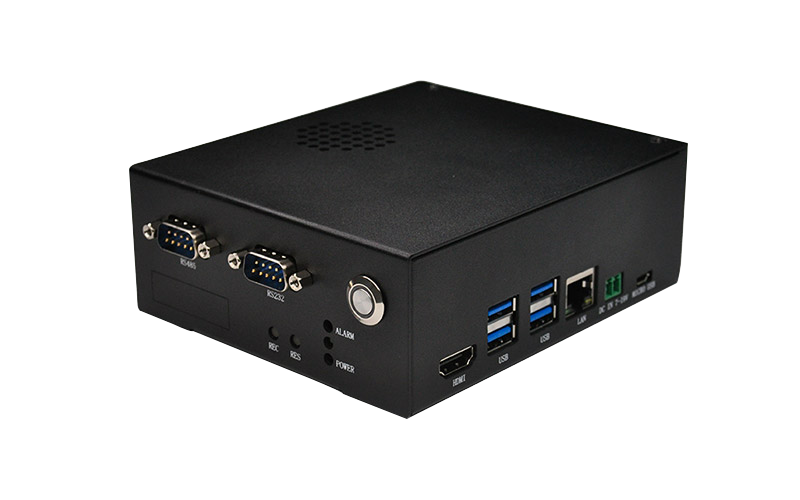

Jinpin E600 Edge Computing Terminal
Jinpin E600 Edge Computing Terminal
● Embedded host equipped with the NVIDIA Jetson series platform core board;
● Faster speed, lower power consumption, and stronger sustained computing capability;
● Better able to meet customers' performance requirements such as fast heat dissipation and low power consumption for long-term operation;
● Suitable for image processing, visual detection, video surveillance, and industrial automation.
Low power consumption, high performance

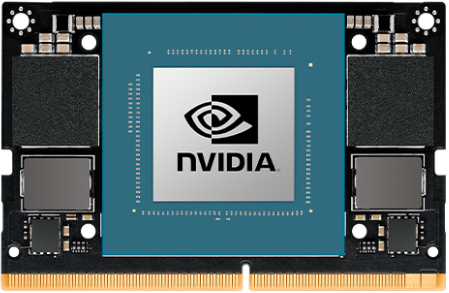

Equipped with the NVIDIA Jetson series platform core board, the embedded host has faster speed, lower power consumption, and stronger sustained computing capability. It is specially designed for the modern industrial industry and better able to meet customers' performance requirements such as fast heat dissipation and low power consumption for long-term operation.
High reliability
It has the ability to resist corrosion, shock and vibration, electrostatic discharge, and high temperature, and can adapt to various harsh environments. The whole machine consumes about 20W and can be turned on 24/7, running stably.
Application scenarios
Image processing, visual detection, video surveillance, industrial automation.
|
Model |
E601 |
E602 |
E603 |
|
CPU |
ARM Cortex-A57(quad-core) |
ARM Cortex-A57(quad-core)
Denver2(dual-core） |
NVIDIA Carmel ARM V8.2(six-core）（6M L2+4M L3) |
|
GPU |
128-core NVIDIA Maxwell@921MHz |
256-core NVIDIA Pascal@1300MHz |
384-core NVIDIA Volta@1100MHz/48个Tensor核 |
|
Memory |
4GB 64位LPDDR4 @1600MHz 25.6GB/s |
4GB 128位LPDDR4 @1600MHz 51.2GB/s |
8GB 128位LPDDR4 @1600MHz 51.2GB/s |
|
Chassis |
Metal chassis（140 x 110 x 58mm) |
||
|
USB |

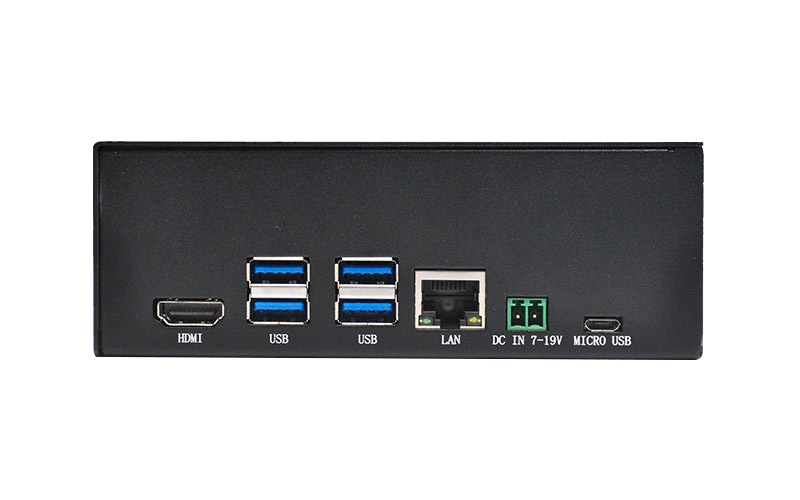

4 x USB3.0 Type-A, 1 x Micro USB(OTG) |
||
|
Network interface |
2 x GbE(E601 1个） |
||
|
Camera interface |
1 x CSI Camera |
||
|
GPIO interface |
2 x GPIO |
||
|
Serial port |
1 x RS232 D-SUB9, 1 x RS485 D-SUB9 |
||
|
TF card interface |
1 x Micro SD |
||
|
SIM card interface |
1 x 4G (multi-frequency/Nano SIM card) |
||
|
HDMI interfaces |
1 x HDMI 2.0 @ 4K p60 |
||
|
Power interface |
5.08MM 接线端子3Pin( DC 12V-24V) |
||
|
Operating temperature |
-20 -60摄氏度 |
||
